3

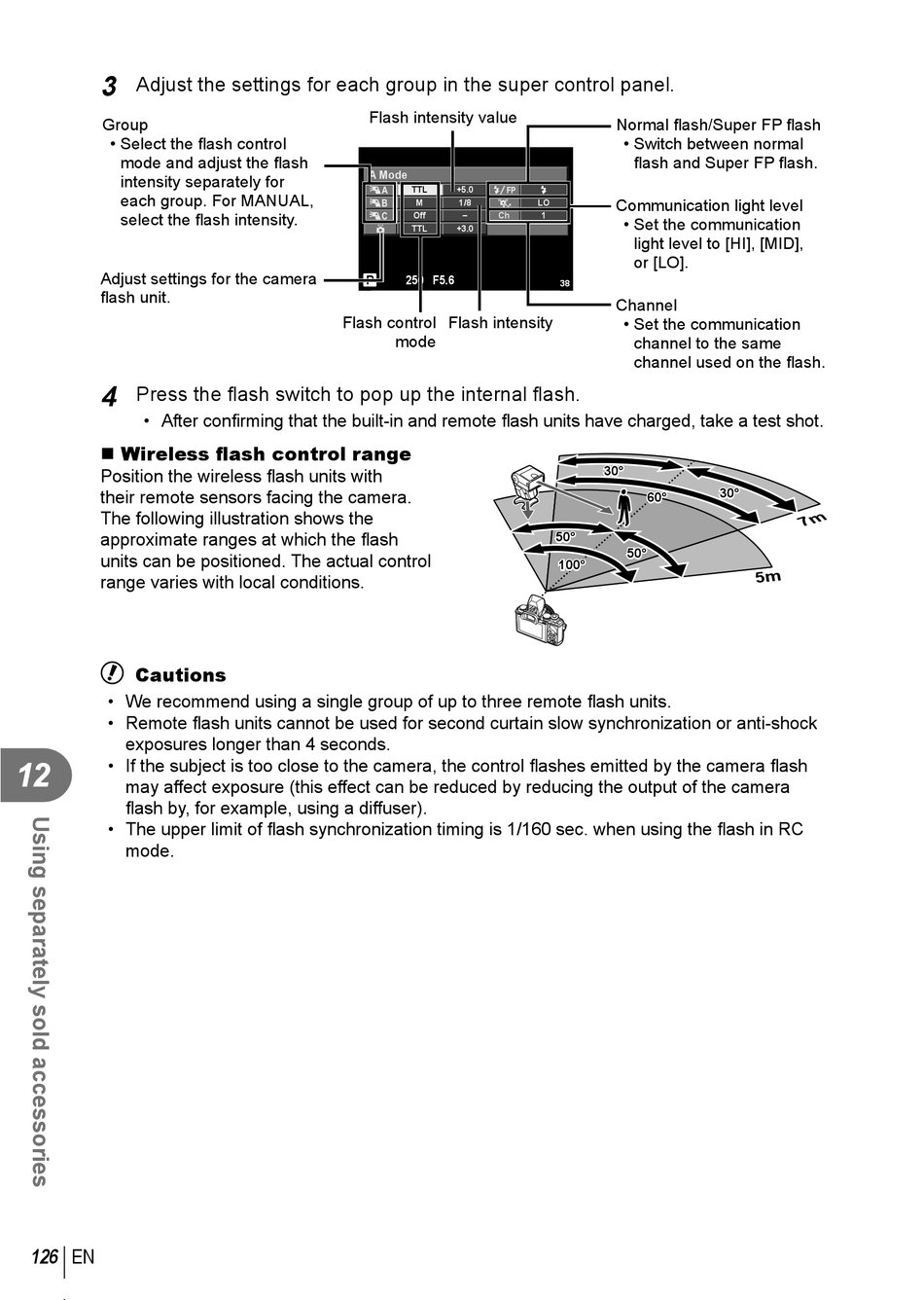

Adjust the settings for each group in the super control panel.
Group
• Select the fl ash control
mode and adjust the fl ash
intensity separately for
each group. For MANUAL,
select the fl ash intensity.
Adjust settings for the camera
fl ash unit.
4
Press the fl ash switch to pop up the internal fl ash.
• After confi rming that the built-in and remote fl ash units have charged, take a test shot.
Wireless fl ash control range
Position the wireless fl ash units with
their remote sensors facing the camera.
The following illustration shows the
approximate ranges at which the fl ash
units can be positioned. The actual control
range varies with local conditions.
#
Cautions
• We recommend using a single group of up to three remote fl ash units.
• Remote fl ash units cannot be used for second curtain slow synchronization or anti-shock
exposures longer than 4 seconds.
• If the subject is too close to the camera, the control fl ashes emitted by the camera fl ash
12
may affect exposure (this effect can be reduced by reducing the output of the camera
fl ash by, for example, using a diffuser).
• The upper limit of fl ash synchronization timing is 1/160 sec. when using the fl ash in RC
mode.
126 EN
Flash intensity value
A Mode
TTL
+5.0
M
1/8
Off
–
Ch
TTL
+3.0
P
250
250 F5.6
Flash control
Flash intensity
mode
Normal fl ash/Super FP fl ash
• Switch between normal
fl ash and Super FP fl ash.
Communication light level
LO
1
• Set the communication
light level to [HI], [MID],
or [LO].
38
38
Channel
• Set the communication
channel to the same
channel used on the fl ash.
30°
30°
60°
60°
50°
50°
50°
50°
100°
100°
30°
30°
